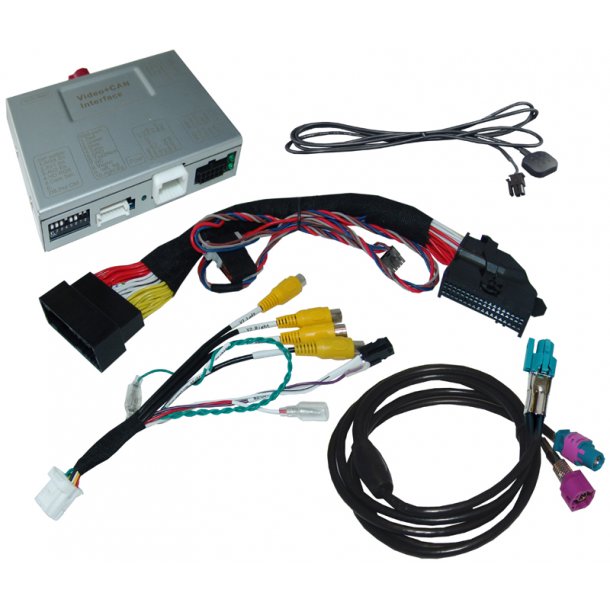

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Ford vehicles with Sony Sync3 full version with APIM and with 7inch or 8inch tablet or non-table monitor.
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Ford | C-Max model year from 2018, Ecosport model year from 2017, Fiesta from 07/2017, Focus model years from 2017 til 2021, Galaxy model year from 2016, Kuga2 Facelift about 09/2016 til 11/2019, Kuga3 11/2019 til 05/2024, Mondeo model year from 2017, Mustang6 from 08/2017 til 04/2023, Puma2, Ranger from 02/2016 til 02/2023, S-Max model year from 2016, Tourneo Custom from 2018 til 07/2023, Transit model year from 2017, Transit Custom from facelift 2018 tis 07/2023, and other vehicles with |
Sync3 full version with APIM and with 7inch or 8inch tablet or non-table monitor |
| Tourneo Courier from 10/2023, Transit Courier from 10/2023 |
Sync4 full version with APIM with horzontal 8inch monitor | |
| Ranger from 10/2022 | Sync4 full version with APIM with vertical 10.1inch monitor Not compatible with Sync4 with vertical 12inch monitor. The NA-HDV-SY4 is the appropriate interface for this. |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio- AUX-input or a FM-modulator can be used. In case that 2 AV sources shall be connected, a desired audio switching will require additional electronic. |
| Inserted video picture at vertical monitors | To ensure a better picture quality, the inserted video picture is displayed on the upper half of the monitor (only Ford Ranger with Sync4 and vertical 10.1inch monitor). |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear- view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Guidelines and PDC | Displayed guidelines and the optical PDC are not available in all vehicles. |
| Video input signal | NTSC video sources compatible only. |
Connectors
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 7~25V DC |
| Standby current | <10mA |
| Current consumption | 200mA@12V |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature range | -40°C to +85°C |
| Dimensions video-box | 118 x 25 x 104mm (W x H x D) |
| Monterings vejledning: | RL4-SY3 |
