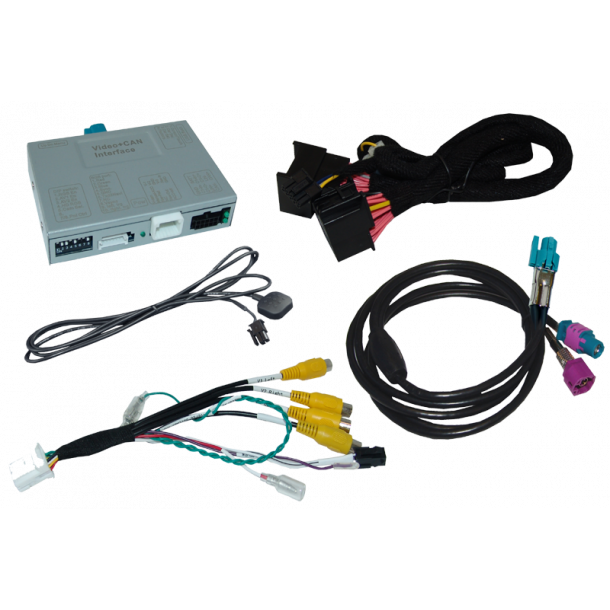

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Ford vehicles with Sony Sync3 Light (R5) version with 6.5inch, 7inch or 8inch tablet monitor.
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Ford | C-Max model year from 2018, Ecosport model year from 2017, Fiesta model year 2018 from 07/2017, Focus model year from 2017, Galaxy model year from 2016, Kuga model year 2018, Mondeo from about 2017, Mustang model year from 2017, Puma, Ranger model year from 2017, S-Max model year from 2016, Tourneo Connect, Tourneo Custom, Transit model year from 2017 Transit Custom facelift from 2018, and other vehicles with |
Sync3 Light (R5) versions with 6.5inch, 7inch or 8inch tablet monitor. |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. In case that 2 AV sources shall be connected, a desired audio switching will require additional electronic. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Guide lines and PDC | Displayed guidelines and PDC are not available in all vehicles. |
Connectors
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 4mA |
| Current consumption | 235mA |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 118 x 25 x 104mm (W x H x D) |
| Monterings vejledning: | RL4-SY3-R5 |
