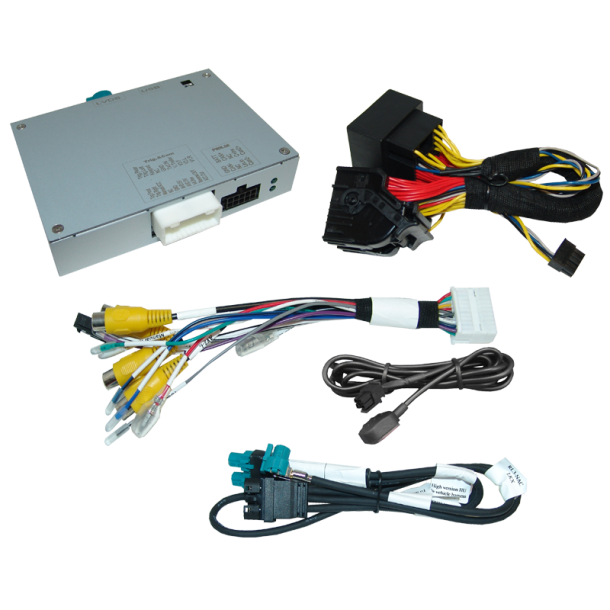

Video inserter for rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Opel and Peugeot with NAC with 10.25 inch monitor.
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera in combination with PDC display (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Citroen | C4 from 11/2020, C5 X from 02/2022, DS3 Crossback from 12/2018, DS4 from 11/2021 |
NAC or DS Connect Radio/Nav with 10.25inch touch monitor For Continental High version an additional cable CAB-HSD-MF026 might be required |
| Opel | Corsa F model year from 2019, Mokka B from 09/2020, |
NAC or RCC with 10.25inch touch monitor For Continental High version an additional cable CAB-HSD-MF026 might be required |
| Peugeot | 208 II from 06/2019, 2008 II from 11/2019, 08 III from 09/2021, 3008 II from 05/2021, 508 II from 10/2018, 5008 II from 10/2020 |
NAC or RCC with 10.25inch touch monitor For Continental High version an additional cable CAB-HSD-MF026 might be required |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For audio insertion factory-audio-AUX-input or a FM-modulator is required. |
| Factory rear-view camera | Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Video input signal | NTSC video sources compatible only. |
| Guidelines and PDC | Displayed guidelines and PDC are not available in all vehicles. Guidelines can only be displayed together with PDC. |
Connectors
- Video-insertion: 4-Pin HSD or double 4-Pin HSD
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 5mA |
| Current consumption | 280mA |
| Video input | 0.7~1V |
| Video input formats | NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 117 x 25 x 108mm (W x H x D) |
| Monterings vejledning: | RL4-NAC12 |
