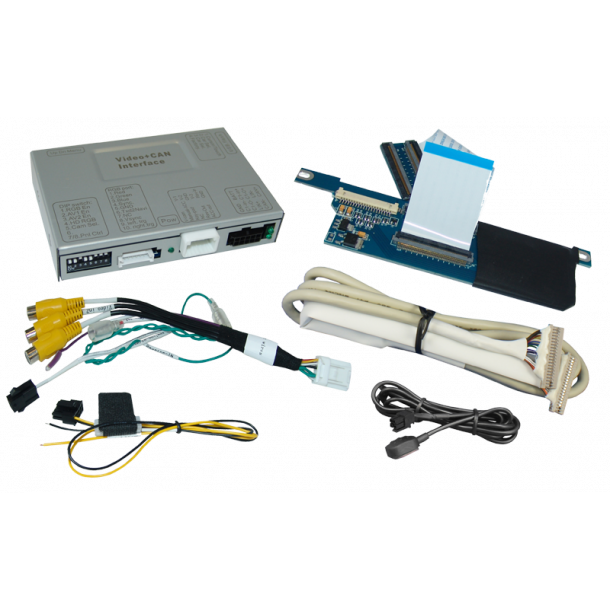

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Mercedes Vito W447 or Sprinter W906 with Audio15 and VW Crafter with RNS6000.
The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Bemærk, dette er en skaffe vare med forlænget leveringstid og der ydes ikke returret på bestillingsvarer/skaffevarer, dvs varer som ikke er lagervarer og som hjemtages specifikt til en ordre.
Derfor venligst sikre dig at det er den rigtige vare til din bil.
©au2Tek.dk2021
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Mercedes Benz | Sprinter (W906) from about 2015, Vito (W447) from about 2015 |
Audio15 NTG2.5/NTG5-447 |
| Volkswagen | Crafter model year from 2015 til 2016 | RNS6000 |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For audio inserting, use the possibly existing factory audio-AUX-input or a FM-modulator. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back, an additional electronic part is required. |
| Connecting 2 AV-sources | If 2 AV-sources shall be connected to the infotainment the optional audio switch SW-A2X1 is available, which is controlled by the video interface. |
| Video sources | Only compatible to NTSC video sources. |
NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!
Connectors
- Video-insertion: ribbon cable
- Power and CAN-bus: open cable ends
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 6.5mA |
| Current consumption | 125mA |
| Video input | 0.7~1V |
| Video input formats | NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 118 x 23 x 86mm (W x H x D) |
| Monterings vejledning: | NA-RL3A15 |
