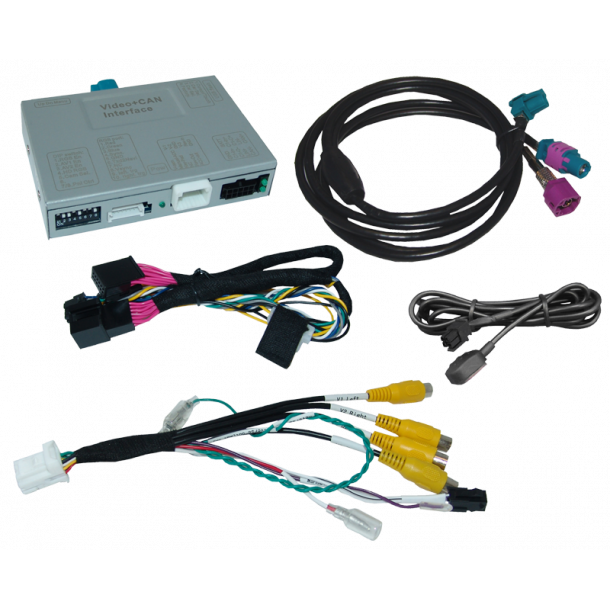

r.LiNK interface til bakkamera, frontkamera med automatisk skift og 2 videosignalkilder. Kompatibel med Mercedes-Benz køretøjer af generation NTG5-205 eller NTG5.1 med Comand Online eller Audio20.
r.LiNK interfacet muliggør integration af et bakkamera, et frontkamera med automatisk skift samt to ekstra videosignalkilder (f.eks. USB-afspiller, DVB-T2 tuner, ...) i bilens fabriksmonterede infotainmentsystem.
Begrænsninger:
Kun video: Interfacet understøtter KUN videosignaler til infotainmentsystemet. For lyd kræves en FM-modulator. For Comand Online NTG5-205 er en valgfri OBD-koder til fabriksmonteret audio-AUX tilgængelig (OBD-N5-X-01). Hvis to lydkilder skal tilsluttes infotainmentsystemet, kræves ekstra elektronik for at skifte mellem dem.
Fabriksmonteret bakkamera: Automatisk skift til bakkameraet aktiveres, så længe bakgearet er engageret. Yderligere elektronik er nødvendig for at forsinke skiftet tilbage til normal visning.
Eftermarkeds frontkamera: Frontkameraet aktiveres automatisk i 10 sekunder, når bakgearet frakobles. Manuel aktivering af frontkameraet er mulig via et eksternt kontrolpanel.
Retningslinjer og PDC: Viste retningslinjer og det optiske PDC-system er ikke tilgængelige i alle køretøjer.
Videosignal: Kun kompatibel med NTSC-videosignaler.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Mercedes Benz | A-class (W176) from 09/2015 til 04/2018, B-class (W246) from 11/2014 til 11/2018, C-class (W205) til about 06/2018, C-class coupe (C205) from about 2015, CLA-coupe (C117) from about 10/2014 til 02/2019, CLA-shooting B (X117) from 03/2015 til 06/2019, CLS-coupe (C218) from about 08/2014 til 01/2018, CLS shooting B (X218) from about 08/2014 til 2019, E-class (S/W212) from about 11/2014, E-class coupe (A/C207) from about 06/2015 til 08/2017, G-model (W463) from 10/2016 til 04/2018, GL-class (X166) from about 09/2016, GLA-class (X156) from 09/2015, GLC-class (X253) model year til 2018, GLE-coupe (C292) model year til 2018, GLE SUV (W166) model year til 2018, GLS-class (X166) from about 11/2015 model year til 2018, GT AMG (C190), ML-class (W166) from 08/2015, SL-class (R231) from about 10/2015, SLC-class (R172) from 2016, V-class (W447) from 2014 til about 02/2020, X-class (BR470) from 11/2017 |
Comand Online NTG5-205 Audio20 CD NTG5-205 Audio20 USB NTG5-205 Comand Online NTG5.1 Audio20 NTG5.1 |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For sound use an FM-modulator. Only for Comand Online NTG5-205, the optional OBD-coder for factory audio-AUX is available (OBD-N5-X- 01). If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatical switching to Rear Rear View Camera as long as the Rerverse Gear is enganged. To delay the Switch-Back additional Electronics is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Guide lines | If the video interface does not receive the required information from the vehicle CAN-bus, the guide-lines will not be supported. |
Connectors
- Video-insertion: 4-pin HSD
- Power: Open cable ends
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 10mA |
| Current consumption | 280mA |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 117 x 25 x 105mm (W x H x D) |
| Monterings vejledning: | RL4-MBN51 |
