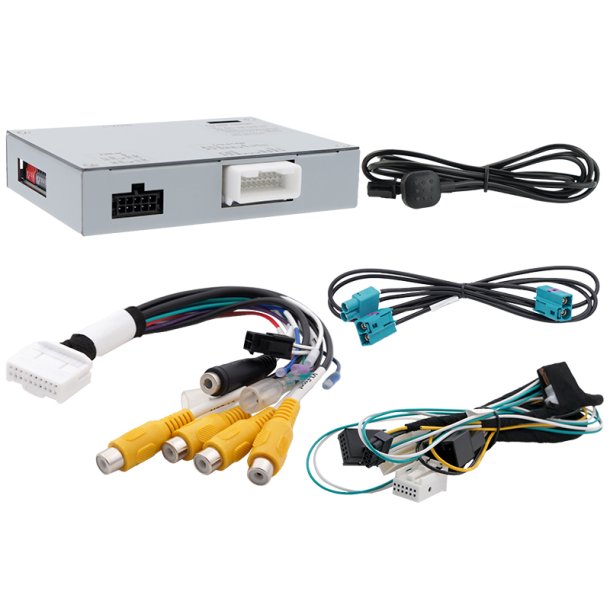

RL4-MBN55
Kompatibel med Mercedes-Benz køretøjer med Comand Online NTG5.5 med 10,25-tommer eller 12-tommer skærm
og Audio 20 NTG5.5 med 7-tommer eller 8,4-tommer skærm
med dobbelt Fakra-stik ved hovedenheden
r.LiNK interfacet muliggør integration af et bakkamera, et frontkamera med automatisk skift samt to ekstra videosignalkilder (f.eks. USB-afspiller, DVB-T2 tuner, ...) i bilens fabriksmonterede infotainmentsystem.
Product features
- Video-inserter for factory-infotainment monitors
- 1 CVBS rear-view camera input
- 1 CVBS front camera input
- 2 CVBS video inputs for after-market devices (e.g. USB-Player, DVB-T2 Tuner)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Mercedes Benz | C-class (W205) from 08/2018 til 11/2020, C-Class T-Model (S205) from 08/2018 til 02/2021, C-Klasse Convertible (A205) from 08/2018 til 03/2023, C-class Coupé (C205) from 08/2018 til 03/2023, CLS-Coupé (C257) from 02/2018 til 07/2020, E-class (W213) from 04/2016 til 06/2020, E-class T-Model (S213) from 04/2016 til 06/2020, E-class convertible (A238) from 09/2017 til 06/2020, E-class Coupé (C238) from 09/2017 til 06/2020, G-class (G463) from 05/2018, GT AMG 4door (X290) from 09/2018 til 06/2020, S-class Coupé (C217) from about 05/2017 til 08/2020, S-class (V/X/W222) from 05/2017 til 11/2020 |
Comand Online or Audio20 NTG5.5 with 7inch, 8inch, 10.25inch or 12.3inch monitor Only for vehicles without factory TV-tuner! |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Video input signal | Only NTSC video sources compatible. |
| Guide lines | If the interface does not receive the required information from the vehicle CAN-bus, guide lines won’t be supported. |
Connectors
- Video-insertion: Double Fakra
- CAN-bus: Plug & play (vehicle specific)
- Power: cable with open ends
- Video-inputs (2x): female RCA connector
- Rear-view camera-input: female RCA connector
- Front camera-input: female RCA connector
Specifications
| Operating voltage | 7~25V DC |
| Standby current | 10mA |
| Current consumption | 200mA@12V |
| Video input | 0.7~1V |
| Video input formats | NTSC |
| Operating temperature range | -40°C to +85°C |
| Dimensions video-box | 119 x 24 x 95 mm (W x H x D) |
| Monterings vejledning: | RL4-MBN55 |
