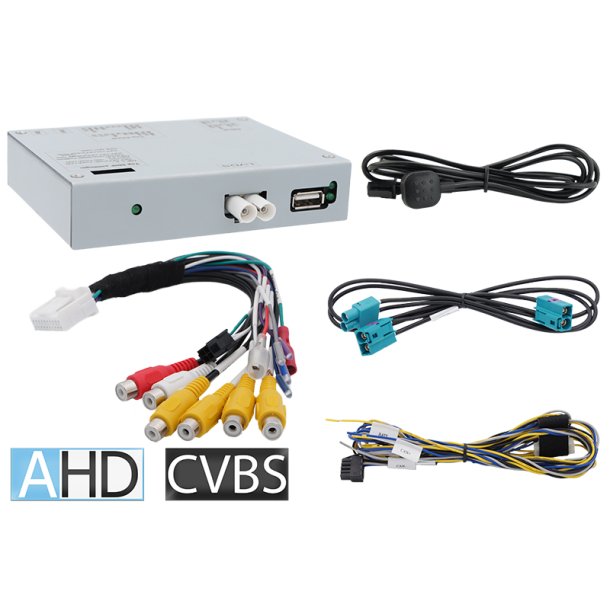

The video interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (for side-cameras or additional after-market video-sources, e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS/AHD-input for rear-view camera
- 1 CVBS/AHD-input for front camera
- 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
- All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input while reverse gear is engaged
- Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
- Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles)
- Picture free during the car ride (only for inserted video-sources)
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Mercedes Benz | A-class (W177) from 05/2018, B-class (W247) from 12/2018, Citan (W420) from 10/2021, CLA coupe (C118) from 03/2019, CLA shooting brake (X118) from 07/2019, CLS coupe (C257) from 07/2020-, E-class (W213) from 06/2020 til 08/2023, E-class T-model (S213) from 06/2020 til 08/2023, E-class coupe (C238) from 06/2020 til 10/2023, E-class convertible (A238) from 06/2020 til 10/2023, EQA SUV (H243) from 02/2021, EQB SUV (X243) from 11/2021, EQC (N293) from 05/2019 til 05/2023, EQT (W420) from 05/2023, EQV (W447) from 10/2020, GLA (H247) from 02/2020, GLB (X247) from 09/2019, GLC coupe (C253) about 05/2019 til 03/2023, GLC SUV (X253) about 05/2019 til 07/2022, GLE coupe (C167) from 11/2019, GLE SUV (V167) from 10/2018, GLS (X167) from 04/2019, GT AMG 4door (X290) from 06/2020, Sprinter (W907/W910) from 06/2018 til model year 2023, T-class (W420) from 2022, V-class (W447) from 03/2020 |
MBUX NTG6 with 7inch, 10.25inch or 12inch monitor |
Limitations
| CAN-bus compatibility |
CAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter.
|
| Video only |
Interface inserts only video-signals into the infotainment. To insert audio signals a possibly existing factory audio-AUX-input or other optional products (e.g. AUX-UNI0x, FM-Modulator) must be used.
|
| Factory rear-view camera |
Automatic switching to factory rear-view camera input is only possible while reverse gear is engaged. For deviating switching times optional accessories are required.
|
| After market front camera |
Front camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear. Manual switching to front camera is possible by external keypad.
|
| Guide lines for rear-view camera |
If the vehicle CAN bus is not fully compatible with the interface or if the connection is analogue, the moving guide lines function cannot be used.
|
| Vehicles with active Park assistant system 235 |
While the factory active park assistant system 235 is in use, the displaying of the camera picture is not possible.
|
Connectors
- Video-insertion: Double Fakra
- Power and CAN-bus: Open cable ends
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
- Trigger wires (4x): Open cable ends
Specifications
| Operating voltage | 12V DC (9~16V) |
| Standby current | about 6mA |
| Current consumption | 310mA |
| Video input | 0.7~1V |
| Video input signal types | CVBS/AHD |
| Signal standards CVBS/AHD | NTSC/PAL |
| Temperature range | -40°C bis +85°C |
| Dimensions video-box | 115 x 25 x 109mm (W x H x D) |
| Monterings vejledning: | RL4-MBN6-A |
