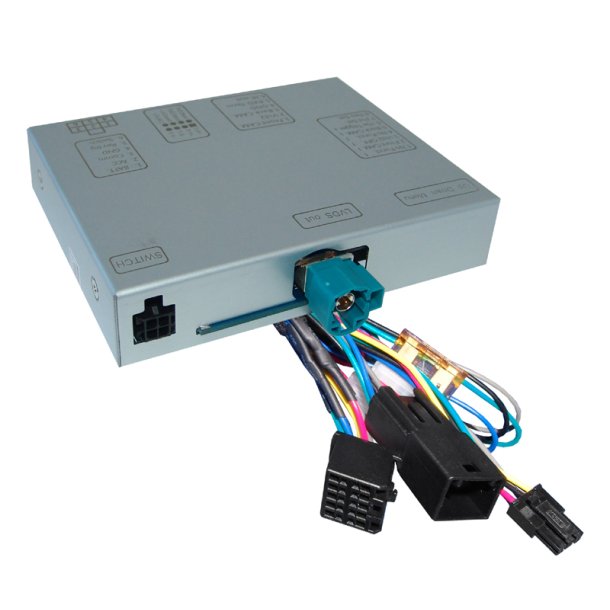

The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL und NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
Brand
Model
Navigation
Chevrolet
Camaro model year from 2016, Corvette C7 model year from 2014 til 2018
MyLink IO6
8inch monitor with separate radio-box
Opel
Astra K (Sports Tourer and 5-door) model year from 2016 til 2019, Insignia A model year from 2014 til 2016, Insignia B model year from 2017 til 06/2018, Mokka X model year from 2016 til 2020
Navi900 IntelliLink 8inch touch (gen. 1 and 2)
Limitations
Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio- AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera
Automatically switching-back from inserted video to factory rear- view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Guide lines
If the CAN-box does not receive the required information from the vehicle CAN-bus, the guide-lines will not be supported.
