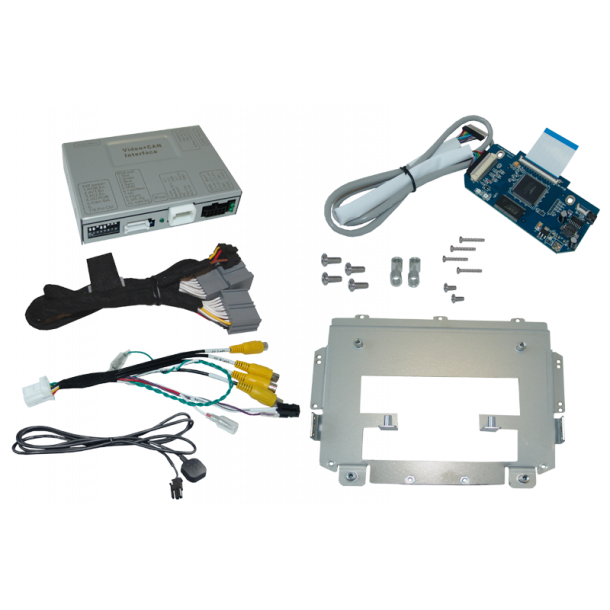

Bakkamera Interface til Opel

3.499,00 DKK

(inkl. moms)

Vejl. udsalgspris 3.499,00 DKK (inkl. moms)

stk.

Model/Varenr.: NA-RL4R40

Lagerstatus: På lager

Beskrivelse

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Opel vehicles with Radio R4.0 IntelliLink (only 7inch monitor with DIN-cage attached).

The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.

Product features

Video-inserter for factory-infotainment systems
1 CVBS rear-view camera video-input
1 CVBS front camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

Brand	Model	Navigation
Opel	Adam, Corsa E til 06/2019, Crossland X model year from 2017 (no GM-LAN), Grandland X model year from 2017 (no GM-LAN), Mokka X model year from 2016, Zafira C model year from 2017	R4.0 IntelliLink 7inch monitor with DIN-cage attached

Limitations

Video only	The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera	Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera	The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Guide lines	Displayed guidelines are not available in all vehicles.
Video sources	Only compatible to NTSC video sources.

NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!

Connectors

Video-insertion: Ribbon cable
Power and CAN-bus: Plug & play (vehicle specific)
Video-input (2x): RCA female connector
Rear-view camera-input: RCA female connector
Front camera-input: RCA female connector

Specifications

Operating voltage	12V DC (7~25V)
Standby current	5mA
Current consumption	100mA
Video input	0.7~1V
Video input formats	PAL/NTSC
Operating temperature	-40°C to +85°C
Dimensions video-box	118 x 26 x 90mm (W x H x D)
