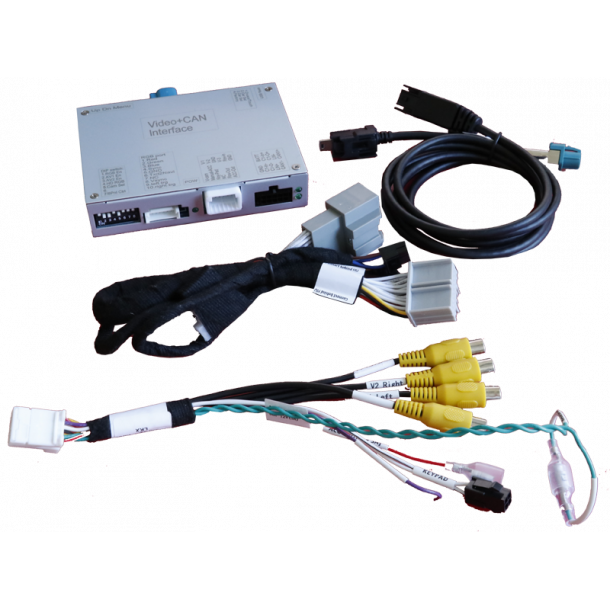

r.LiNK video inserter for rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Opel vehicles and Chevrolet Camaro with Radio R4.0 IntelliLink (only 7inch monitor with separate radio box).
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Infotainment |
|---|---|---|
| Chevrolet | Camaro model years from 2016 | MyLink - 7inch monitor with separate radio-box |
| Opel | Astra K (Sports Tourer and 5-door) model years from 2016 til 2019, Insignia B model years from 2017 til 06/2018, Karl til 03/2018 |
R4.0 IntelliLink - 7inch monitor with separate radio-box |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. In case that 2 AV sources shall be connected, a desired audio switching will require additional electronic. |
| Factory rear-view camera | Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Guide lines | Due to the frequent changes by the vehicle manufacturers, the displaying of guide lines doesn’t succeed in several vehicles. |
Connectors
- Video-insertion: Mini USB
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 15mA |
| Current consumption | 160mA@12V |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 117 x 25 x 105mm (W x H x D) |
