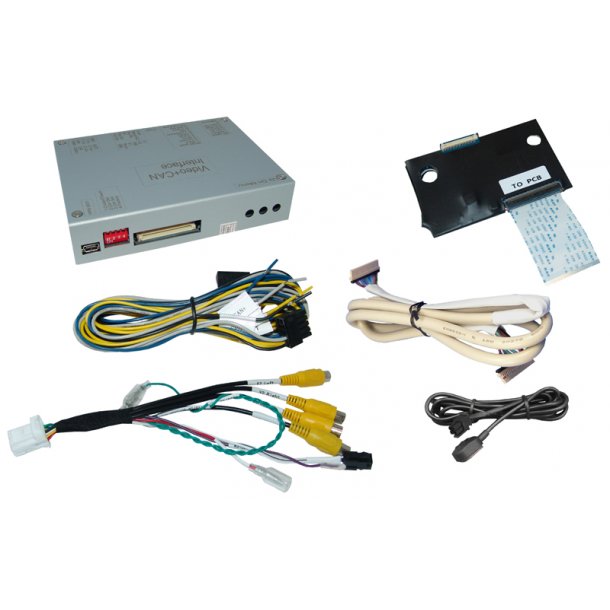

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Jeep Compass MY2018- and other vehicles with Uconnect Multimediasystem with 8.4inch monitor and all-in-one head-unit with capacitive touch.
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
Brand
Model
Navigation
Jeep
Compass model year from 2018,
Renegade facelift model year from 2019,
Wrangler JL model year from 2019
Uconnect Multimediasystem mit 8.4 Zoll All-in-one Head-Unit mit kapazitivem Touch
Limitations
Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera
The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!
Connectors
Video-insertion: Ribbon cable
Power and CAN-bus: Open cable ends
Video-input (2x): RCA female connector
Rear-view camera-input: RCA female connector
Front camera-input: RCA female connector
Specifications
Operating voltage
12V DC (7~25V)
Standby current
25mA
Current consumption
150mA
Video input
0.7~1V
Video input formats
PAL/NTSC
Operating temperature
-40°C to +85°C
Dimensions video-box
118 x 25 x 104mm (W x H x D)
