Bakkamera indbygget i bremselygten - Ford Transit
au2tekCVC-FOR-01
Passer på:
Ford Transit MK8 (2013-2018)
Ford Transit MK8 Facelift (2018 >)
På lager
1.599,00 DKK

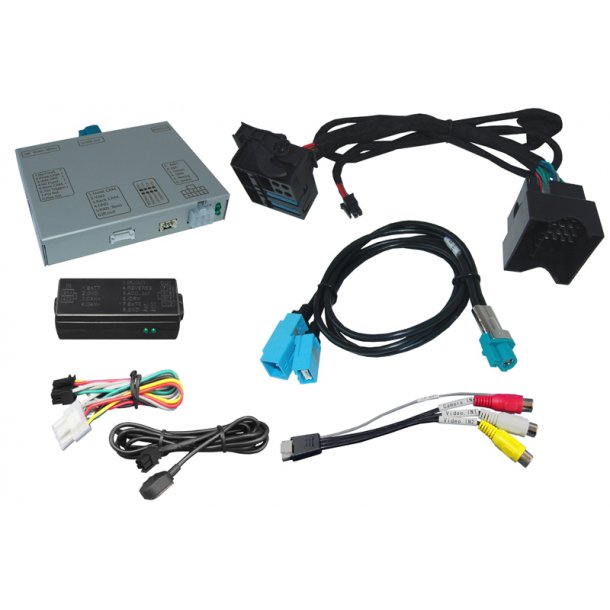

(inkl. moms)r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Volvo model years from 2014 with 7 inch Sensus Connect. Combined display of factory optical park-system with after-market rear-view camera.
The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Picture-in-picture (PIP) mode combining after-market rear-view camera picture with factory parking sensor graphic (not for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Volvo | Vehicles from model year 2014 with 7" monitor | Sensus Connect (with Internet button - see picture) |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM- modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| Guide lines / PDC | If the CAN-box does not receive the required information from the vehicle CAN- bus, neither guide-lines nor PDC will be supported. |
Connectors
- Video-insertion: standard blue GVIF
- Power and CAN-bus: Plug & play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 40mA |
| Current consumption | 240mA |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 113 x 22 x 104mm (W x H x D) |
| Dimensions CAN-box | 73 x 22 x 30mm (W x H x D) |
