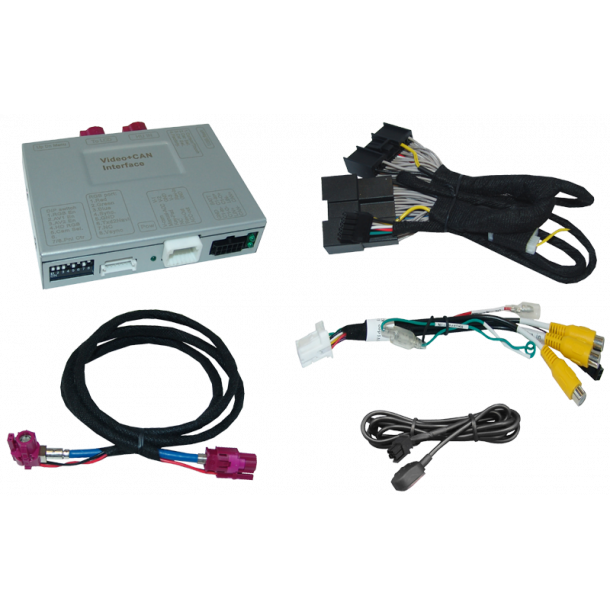

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Land Rover and Jaguar with 10 inch Incontrol Touch Pro (model years 2016-). Pnp for APIX2.
The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system.
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
Brand
Model
Navigation
Jaguar
F-Pace,
F-Type,
XE,
XF,
XJ
--- model year 2016 ---
Incontrol Touch Pro - 10.2 inch 24:9 monitor
NOT compatible with Dual-View monitor!
Land Rover
Discovery5 model year from 2017,
Discovery Sport model year from 2017,
Range Rover model year 2017,
Range Rover Sport model year 2017,
Range Rover Evoque model year 2017-2019
Incontrol Touch Pro - 10.2 inch 24:9 monitor
NOT compatible with Dual-View monitor!
Limitations
Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM- modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
PDC and guidelines
If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported.
Video input signal
Only NTSC video sources compatible
Connectors
Video-insertion: 4+2pin HSD+2
Power and CAN-bus: Plug & play (vehicle specific)
Video-input (2x): RCA female connector
Rear-view camera-input: RCA female connector
Specifications
Operating voltage
12V DC (7~25V)
Standby current
<11mA
Current consumption
230mA
Video input
0.7~1V
Video input formats
NTSC
Operating temperature range
-40°C to +85°C
Dimensions video-box
118 x 25 x 105mm (W x H x D)
