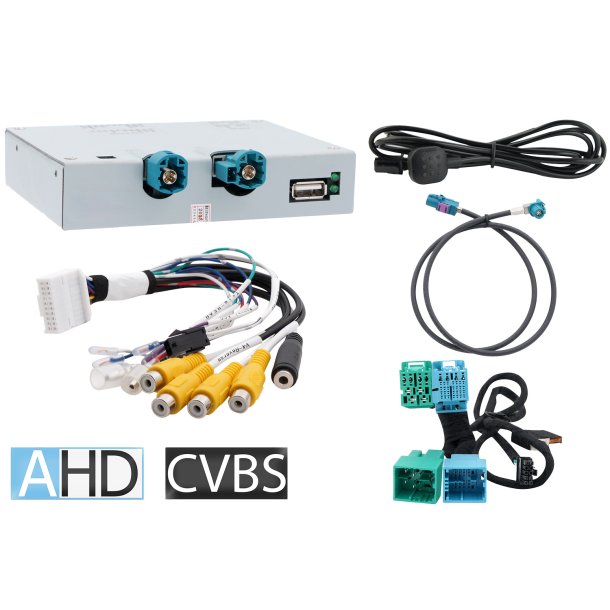

The video interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Alfa Romeo | Tonale (965) since 05/2022 | Connect 10.25inch or Connect NAV 10.25inch - (R1 INT ER) with ultra-wide tablet monitor with separate head-unit |
| Citroen | Jumper2 since 2021 | Uconnect5 (R1 EXT ER) with 10inch tablet monitor with separate head-unit |
| Fiat | 500, 500e since 11/2020, Ducato3 (series 8) since model year 2021, Tipo (356) since model year 2023 |
Uconnect5 R1 EXT ER with 10inch tablet monitor or Uconnect5 R1 INT ER with 10.25inch ultra-wide tablet monitor with separate head-unit |
| Jeep | Compass since model year 2021 | Uconnect5 R1 EXT ER with 10.1inch tablet monitor with separate head-unit |
| Opel | Movano C since 05/2021 | Uconnect5 R1 EXT ER with 10inch tablet monitor or Uconnect5 R1 INT ER with 10.25inch ultra-wide tablet monitor with separate head-unit |
| Peugeot | Boxer2 since model year 2021 | Uconnect5 (R1 EXT ER) with 10inch tablet monitor with separate head-unit |
| Toyota | Pro Ace Max | Uconnect5 (R1 EXT ER) with 10inch tablet monitor with separate head-unit |
Attention: Not compatible with Jeep Compass since model year 2021 with Uconnect5 with 8.4inch tablet monitor and all-in-one head unit.
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Video input signal | NTSC video sources compatible only. |
Connectors
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 4mA |
| Current consumption | 270mA |
| Video input | 0.7~1V |
| Video input formats | NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 117 x 26 x 103mm (W x H x D) |
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| ins_eng_HDA-UCON10.pdf | 4.31MB | Download |
