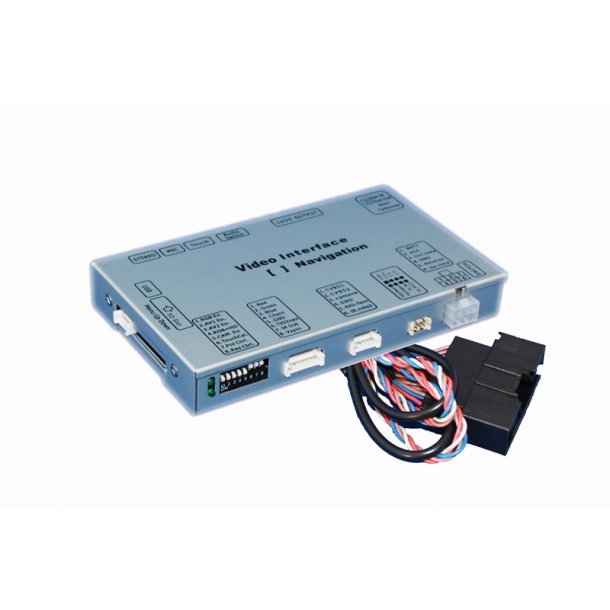

v.LiNK video inserter compatible with Ford vehicles with Sony Sync2 head-unit with 8inch monitor. For connection of 2 different video-sources and 1 rear-view camera.
The v.LiNK interface allows to insert a rear-view camera and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Built-in audio-switch (no audio-insertion)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Activatable parking guide lines for rear-view camera (not available on all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Bemærk, dette er en skaffe vare med forlænget leveringstid og der ydes ikke returret på bestillingsvarer/skaffevarer, dvs varer som ikke er lagervarer og som hjemtages specifikt til en ordre.
Derfor venligst sikre dig at det er den rigtige vare til din bil.
©au2Tek.dk2021
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Ford | C-Max model year from 2016, Galaxy model year til 2016, Kuga model year from 2016 til 2017, Mondeo model year from 2015 til 2016/2017, Raptor F150 2013, S-Max model year til 2015, and other vehicles with |
Sony Sync2 Touch |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back, an additional electronic part is required. |
| Video sources | Only compatible to NTSC video sources. |
NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!
Connectors
- Video-insertion: ribbon cable
- Power and CAN-bus: Plug & play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Audio-switch: each 2-channel RCA female connector (2 inputs to 1 output)
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | <10mA |
| Current consumption | 700mA |
| Video input | 0.7~1V |
| Video input formats | NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 155 x 22 x 90mm (W x H x D) |
| Dimensions CAN-box | 73 x 22 x 30mm (W x H x D) |
