Videointerfacet gør det muligt at tilslutte et bakkamera, et frontkamera med automatisk omskiftning samt to forskellige videokilder (f.eks. USB-afspiller, DVB-T2 tuner m.m.) til bilens originale infotainmentsystem.
Produktegenskaber
- Videointerface til originale infotainmentsystemer
- 1 CVBS videoindgang til bakkamera
- 1 CVBS videoindgang til frontkamera
- 2 CVBS videoindgange til eksterne enheder (f.eks. USB-afspiller, DVB-T2 tuner m.m.)
- Automatisk skift til bakkamera ved aktivering af bakgear
- Automatisk visning af frontkamera i 10 sekunder efter frakobling af bakgear
- Video-in-motion funktion (kun for tilsluttede videokilder)
- Videoindgange kompatible med NTSC-formatet
NB.: Der kan kun tilsluttes PAL og NTSC kamera til dette interface, IKKE AHD
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| MAN | TGE (VW Crafter based) from 04/2017 til model year 2023 | MIB2 GP Composition Color All-in-one head-unit with 6.5inch monitor |
| Seat | Arona (KJ7) model years 2017-2021, Ateca (KH7) from 04/2016 til model year 2020, Ibiza (KJ) from 06/2017 til model year 2021, Leon3 (5F) model years 2018-2019, Toledo4 (KG) model years from 2018 |
MIB2 GP (Entry) - Media System Touch Color All-in-one DIN head-unit with 6.5inch monitor |
| Skoda | Fabia3 (NJ) from 10/2014 til 08/2021, Fabia4 (PJ) from 09/2021, Octavia3 (5E) model years from 2018, Rapid (NH1) model years from 2018, Superb3 (3V) model years from 2018 til 11/2023 |
MIB2 GP - Radio Swing All-in-one DIN head-unit with 6.5inch monitor and PHONE-button on bottom left |
| VW | Crafter (SZ/SY) model years from 2017 til 06/2024, Golf 7 (5Q) model years from 2018, Golf 7 Sportsvan model years 2018-2020, Passat (B8) model years from 2018 til 03/2024, Polo 6 (AW1) model years from 2018, T-Cross (C1) from 04/2019 til 12/2023, T-Roc (A11) model years from 2018 til 03/2024, Taigo (CS) from 09/2021 til 03/2024, Tiguan (AD1) model years from 2018 til 11/2023, Touran (ST) model years from 2018, Transporter T6.1 (SH) from 10/2019 |
MIB2 GP (Entry) - Composition Color All-in-one DIN head-unit with 6.5inch monitor |
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. In case that 2 AV sources shall be connected, a desired audio switching will require additional electronic. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!

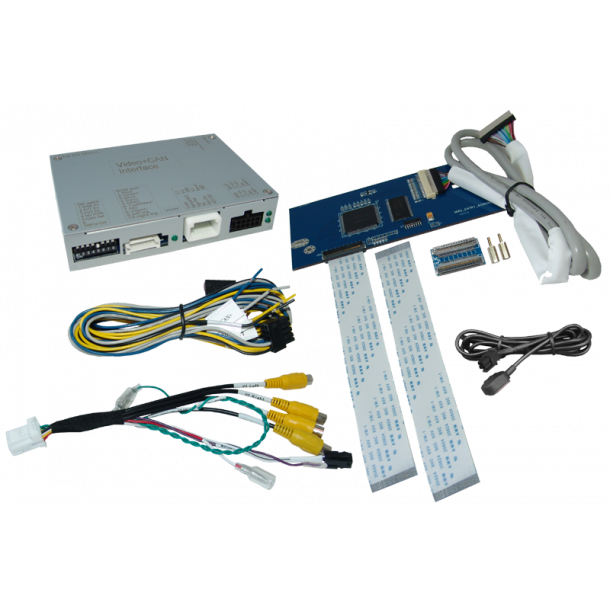

Connectors
- Video-insertion: ribbon cable
- Power and CAN-bus: open cable ends
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 7~25V DC |
| Standby current | 12mA |
| Current consumption | 150mA@12V |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature range | -40°C to +85°C |
| Dimensions video-box | 117 x 26 x 90mm (W x H x D) |
| Dimensions daughter PCB | 148 x 5 x 61mm (W x H x D) |
