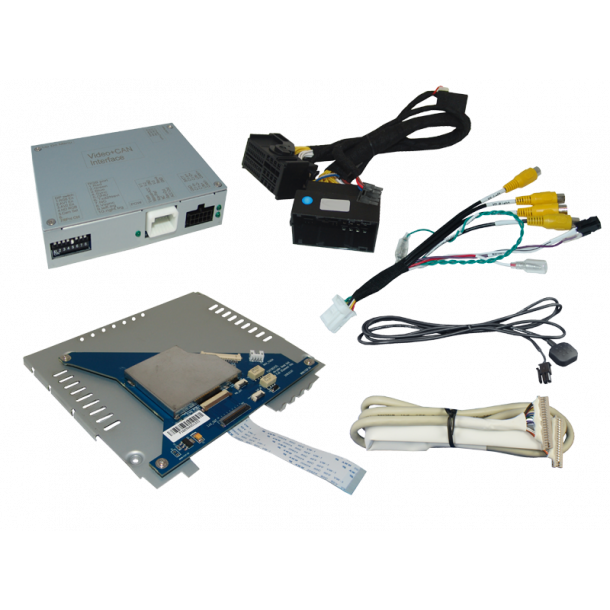

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Alfa Romeo Mito, Citroen, Dodge, Fiat and Peugeot vehicles with Uconnect 5 VP2/RA2 with CD-drive, DIN-shell behind front-panel and 5 inch monitor.
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
NB.: Der kan kun tilsluttes PAL og NTSC kamera til dette interface IKKE AHD
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Bemærk, dette er en skaffe vare med forlænget leveringstid og der ydes ikke returret på bestillingsvarer/skaffevarer, dvs varer som ikke er lagervarer og som hjemtages specifikt til en ordre.
Derfor venligst sikre dig at det er den rigtige vare til din bil.
©au2Tek.dk2021
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Alfa Romeo | Giulietta (940) facelift 2013 from 08/2013 til 03/2016, MiTo from about 2014 |
Uconnect 5 VP2/RA2 with DIN-shell behind front-panel* |
| Citroen | Jumper2 (X250/X290)from 05/2014 til model year 2023, Relay2 from 05/2014 til model year 2023 |
Uconnect 5 VP2/RA2 with DIN-shell behind front-panel* |
| Dodge | RAM 1500/2500/3500 model years 2013-2018 and other vehicles with |
Uconnect 5 VP2/RA2 with DIN-shell behind front-panel* |
| Fiat | 500, 500L, Doblo, Ducato3 (250/251/X290) from 06/2016 til model year 2020, Tipo and other vehicles with |
Uconnect VP2/RA2, 5inch monitor with DIN-shell behind front-panel* |
| Jeep | Renegade model year from 2014 | Uconnect Fiat 520 VP2 with 5inch monitor, All-in-One WITH DIN-shell behind front-panel* |
| Opel | Movano C from 05/2021 til model year 2023 | Uconnect VP2/RA2, 5inch monitor DIN-shell behind front-panel* |
| Peugeot | Boxer2 (X250/X290) from model year 2012 til model year 2023 | Uconnect VP2/RA2, 5inch monitor DIN-shell behind front-panel* |
*Note: Units with a CD drive always have a DIN-shell behind the head unit's front-panel. Units without a CD drive are available with and without a DIN-shell. For units without DIN-shell, the RL4-UCON5-CP is the suitable interface.
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| After market front camera | The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. |
| Video input signal | NTSC video sources compatible only. |
NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!
Connectors
- Video-insertion: Ribbon cable
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 3.6mA |
| Current consumption | 112mA |
| Video input | 0.7~1V |
| Video input formats | PAL/NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 115 x 25 x 89mm (W x H x D) |
| Monterings vejledning: | NA_RL4-UCON5-F |
