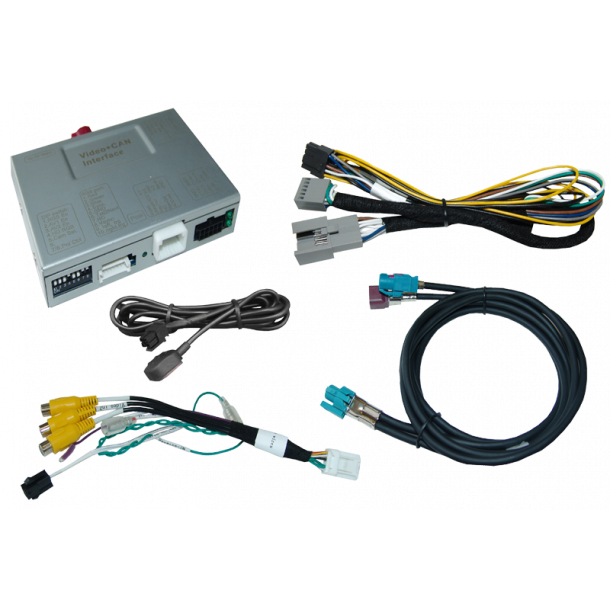

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with VAG vehicles with MIB/MIB2/MIB3 standard/high systems and Porsche vehicles with PCM4.0.
Not compatible with MIB2 GP with radio and screen as one unit. Please use https://au2tek.dk/shop/2847-seat/5409-bakkamera-interface-til-seat-skoda-vw/
The r.LiNK interface allows to insert a rear-view camera and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs NTSC compatible
Bemærk:
Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.
Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.
En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.
Derfor anbefales det ikke at opdatere bilens multimedie system.
Compatibility
| Brand | Model | Navigation |
|---|---|---|
| Audi | A3 (8V) from 05/2012, A4 (8W) from 08/2015 til 04/2019, A5 (F5) from 07/2016 til 04/2019, A6 (4G) from 09/2014 til 05/2018, A7 (4G) from 05/2014 til 01/2018, Q2 (GA) from 09/2016, Q5 from 2017, Q7 (4M) from 03/2015 til 08/2019 |
MMI Navigation Plus with MMI touch 7, 8 or 8.3inch MIB/MIB II Main-Unit |
| A3 (8V) from 05/2012, A4 (8W) from 08/2015 til 04/2019, A5 (F5) from 07/2016 til 04/2019, Q2 (GA) from 09/2016, Q5 from 2017, Q7 (4M) from 03/2015 til 08/2019 |
MMI Navigation 7inch MIB Std Nav/MIB Std Plus |
|
| MMI Radio Plus 5.8 or 7inch MIB Entry Plus/MIB Std |
||
| Bentley | Bentayga | MIB with 8inch monitor |
| Porsche | 911 (991.2) model years from 2016 til 2019, Boxster (982) model years from 2016, Cayenne E2 (92A) model years from 2016 til 2017, Cayman (982) model years from 2016, Macan model years from 2015 til 2018 and other vehicles with |
PCM 4.0 |
| Seat | Arona (KJ7) model year from 2017, Ateca (KH7) model year from 2017, Ibiza (6P) model year from 2016, Leon3 (5F) model year from 2013, Toledo4 (KG) model year from 2016 |
MIB/MIB2/MIB3 High/Standard Navigationssystem Plus oder Media System Plus/Easy Connect 6.5 Zoll oder 8 Zoll Monitor |
| Skoda | Fabia3 (NJ) model year from 2014, Karoq (NU7) model year from 2018, Kodiaq (NS7) model year from 2017, Octavia3 (5E) model year from 2012, Rapid (NH1) model year from 2016, Superb3 (3V) model year from 2015 |
MIB/MIB2/MIB3 High/Columbus or Standard/Bolero/Amundsen 5.8inch, 6.5inch or 8inch monitor. Not compatible with: 2018 9.2inch monitor. |
| VW | Arteon (3H) model year from 2018, Crafter (SZ/SY) model year from 2017, Golf7 model year from 2012, Golf7 Sportsvan model year from 2014, Passat (B8) model year from 2016, Polo5 (6C) model year from 2014 til 2017, Polo6 (AW1) model year from 2018, Transporter T6.1 from 2020, T-Cross (C1) from 04/2019, T-Roc (A11) model year from 2018, Tiguan2 (AD1) model year from 2016, Touran (5T) model year from 2016 |
MIB/MIB2/MIB3 High/Discover Pro and Standard/Composition Media 5.8inch, 6.5inch or 8inch monitor. Not compatible with: 2018 9.2inch monitor. |
ATTENTION! Interface is not compatible with Audi TT, Audi R8 and Lamborghini Huracan vehicles.
Here the RL3-MIB-TT must be used.
Limitations
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX- input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| PDC and guidelines | If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported. |
| Video sources | Only compatible to NTSC video sources. |
Connectors
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
Specifications
| Operating voltage | 12V DC (7~25V) |
| Standby current | 12mA |
| Current consumption | 210mA |
| Video input | 0.7~1V |
| Video input formats | NTSC |
| Operating temperature | -40°C to +85°C |
| Dimensions video-box | 119 x 24 x 114mm (W x H x D) |
| Monterings vejledning: | NA-RL3MIB4_RL4-MIB |
